Hardware
We build the box. And stand behind it.
Six display families, engineered and assembled in-house in Birmingham, Alabama, because a managed service is only as good as the hardware it manages.
Six display families
Jump to the family for your environment
Quality, proven per unit
Day 1 of 14
Every display runs a 14-day powered burn-in before it ships, with photographic evidence recorded per project. Infant-mortality failures happen on our floor, not on your platform.
14 days
powered burn-in
Per unit
photo evidence recorded
Buy America
compliant assembly
Inside every display
A display that watches its own back
Monitoring is built into every unit we ship, streaming live telemetry: light, temperature, shock, noise, position, signal, doors, and power. Solar sites report battery and charge-controller state the same way, and LED walls take their configuration and health checks over the cloud. The fleet runs itself and calls for help before riders notice anything.
Ambient light
··lux
auto-brightness scaling
Enclosure temp
··°F
heating & cooling triggers
Shock / vandalism
··g
impact alerts to RDMC
Ambient noise
··dB
dynamic ADA audio volume
EVERY MPM DISPLAY
MONITORED
FROM THE INSIDE
REPORTING TO RDMC
8 telemetry channels · 24/7
GPS + cellular
··sats
live location · geo-fence triggers
LTE signal
··dBm
connectivity watchdog
Door GPIO
··
next-stop & door-side awareness
Power & solar
··%
battery + charge-controller state
Display families
A display for every environment
Bus, BRT, paratransit & rail cars
M-Series · On-Vehicle
- Sizes
- 15"–48" in landscape, vertical, superwide & ultrawide
- Variants
- Intelligent (onboard controller) & secondary (SDI-fed), single or dual-screen
- Rail
- M24R / M28UW-Rail / M29RSW rolling-stock variants
- Fit
- Sized for every major US bus OEM, model-specific bracket kits
Stops, shelters, platforms with AC power
EX-Series · Outdoor
- Sizes
- 19"–92" in landscape, portrait, superwide, ultrawide & dual-sided
- Mounts
- Wall, flag, roof, pedestal, freestanding, dual-sided & triangle kiosks
- Brightness
- 1,500 nits (E) · 2,500 nits (EX) · IK7 / IK10 glass · IP65 / IP66
- Serviceable
- Environmentally managed with field-replaceable filter cartridges
Terminals, operations centers, lobbies
I/IX-Series · Indoor
- Sizes
- 16" tabletop touch kiosk to 75" touch wall
- Forms
- Rugged monitors, pedestal & swivel kiosks, semi-outdoor window-facing
- Brightness
- 250 NIT (I) · 450 NIT (IX), tempered AR glass
- Video walls
- Slim-bezel LCD walls down to 2.6mm seams
Solar & off-grid stops, no trenching
E-Series Low Power · Off-Grid
- Types
- Solar e-ink, full-color e-paper & transflective solar LCD
- Sizes
- 13"–55", dual-sided options
- Power
- Solar + LiFePO4 battery with smart voltage/temp telemetry
- Connectivity
- LTE CAT-4 · onboard monitoring
Streetcar corridors, BRT, high-visibility wayside
LC / LM · LED
- LC · cabinet
- Full sign cabinet with docking cards and EX-style serviceability, like the streetcar route signs
- LM · modular
- Build any size or shape from IP66 modules on a single controller; modules can even be physically separated
- Video walls
- Down to 1.2mm seams, single & dual-sided
- Signature
- Dual-sided round LED pendant for terminals & platforms
Rolling stock: vestibule, saloon, route map
MR-Series · Rail Grade
- Models
- MR16s 16in · MR27vs 27in · MR28uws 28in ultrawide
- Standards
- Designed to EN 50155:2021 + EN 50121-3-2
- Video
- SDI (BNC) · HDBaseT (M12) · IP multicast
- Build
- IK10 glass, LSHF wiring, anti-ligature, 24V DC
Mounting, casing, and enclosure options for every family: wall, pole, tilt, and custom fabrication. Environmental management and 24/7 IoT hardware monitoring included across the line.Request full spec sheets and CAD.
MP controller line
We build the computer too
Every MPM display runs on an MPM controller: a hardened Android platform with a hardware watchdog, GPIO for vehicle and station I/O, scheduled power, and silent over-the-air updates. No consumer media players, no Windows boxes, no third-party firmware roadmap.
MP-210 Pro
Enterprise controller, 8-core RK3588, Android 12
MP-200
Mainstream controller, RK3568 class
MP-190 / MP-185 Pro
Professional controllers for standard deployments
MP-160
Low-power controller for the ePaper line
MP-140 / LC-150
LED controllers & video processors
Already own displays?
Modernize what you have
Retrofit kits bring third-party hardware onto the MP.TV platform, including an E-Ink retrofit for leading legacy sign hardware and an onboard retrofit kit for existing vehicle displays. Keep the enclosures and wiring you paid for; replace the electronics, the software, and the support model.
From our floor to your fleet
A real production floor in Birmingham
FABRICATE
In-house fabrication and assembly of displays, enclosures, mounting, and custom brackets.
STAGE
Racked warehouse with a dedicated packing line. Units are provisioned, configured, and staged per project.
SHIP
Six outbound bays. Crated, cushioned, and tracked to your site or installer.
RETURN
Per-family warranty programs and a real RMA flow: advance replacement for managed clients, with repair and root-cause on our bench.
Off the floor
Where the hardware ends up

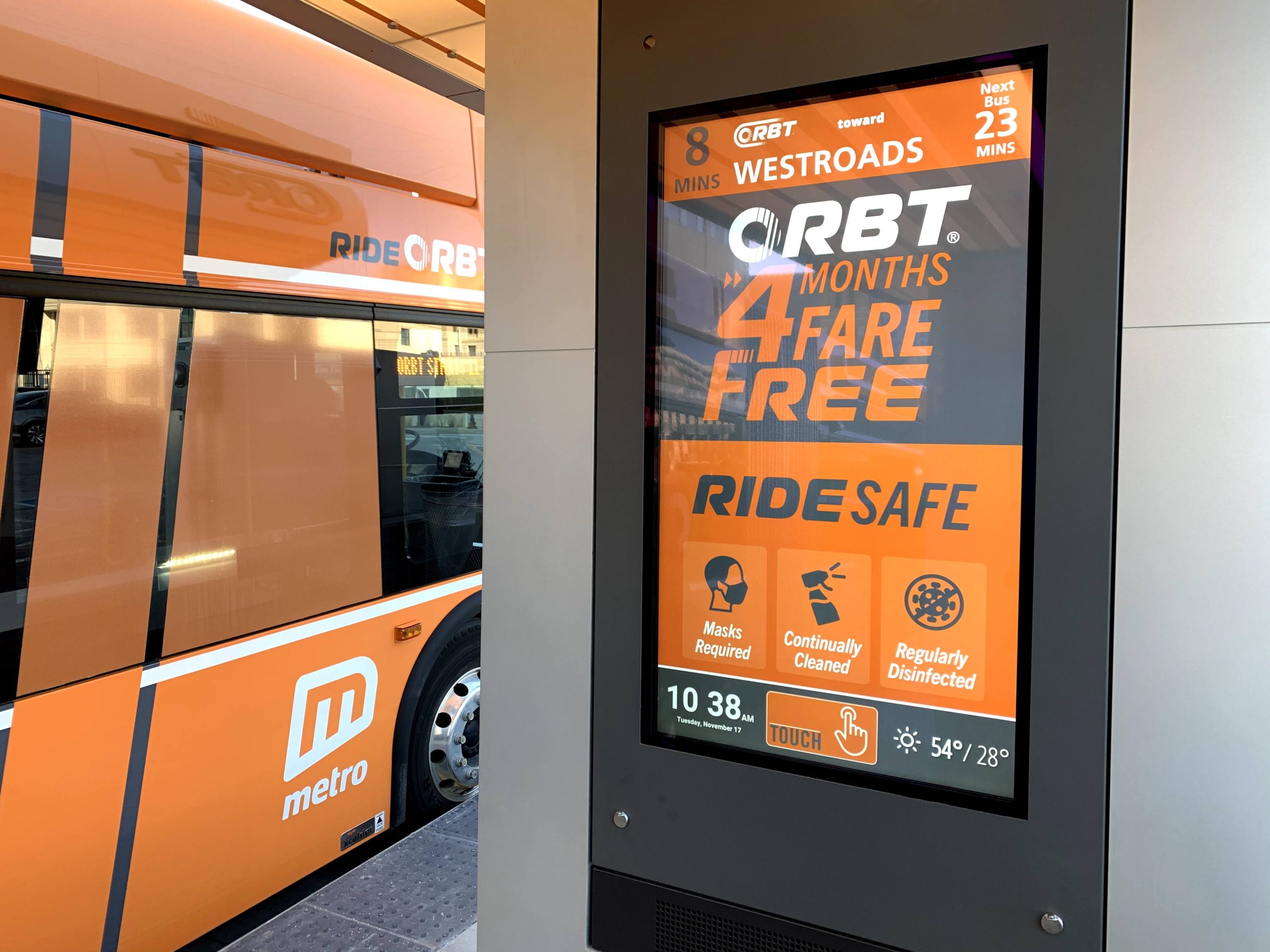

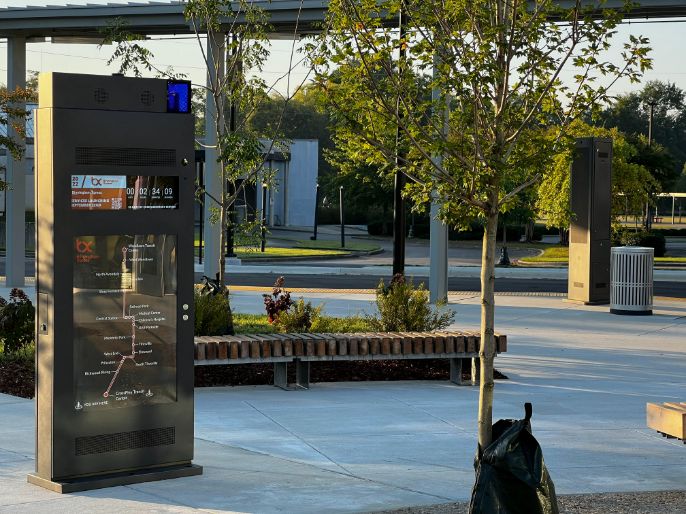

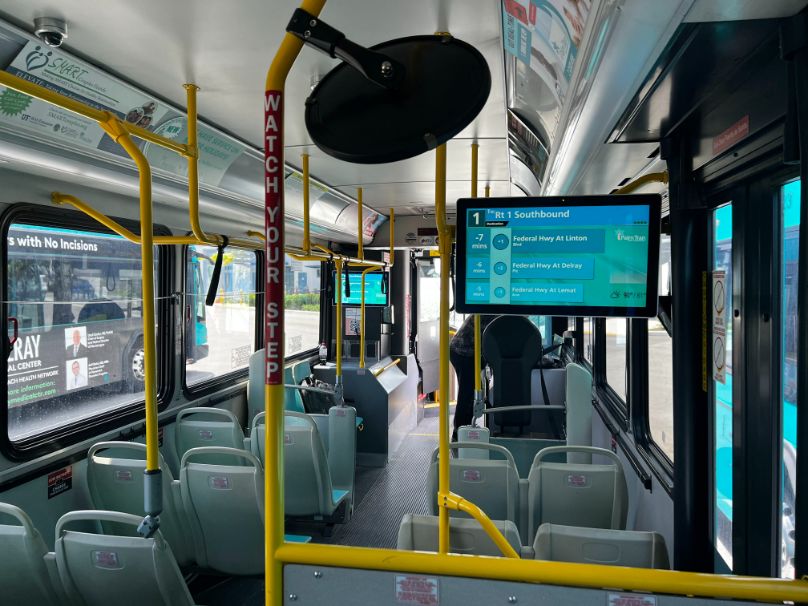

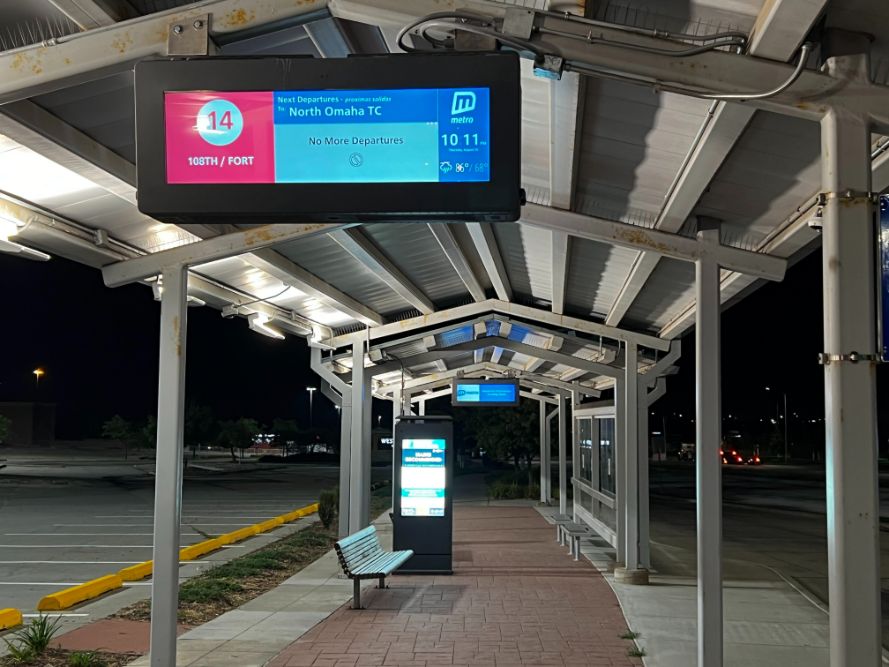

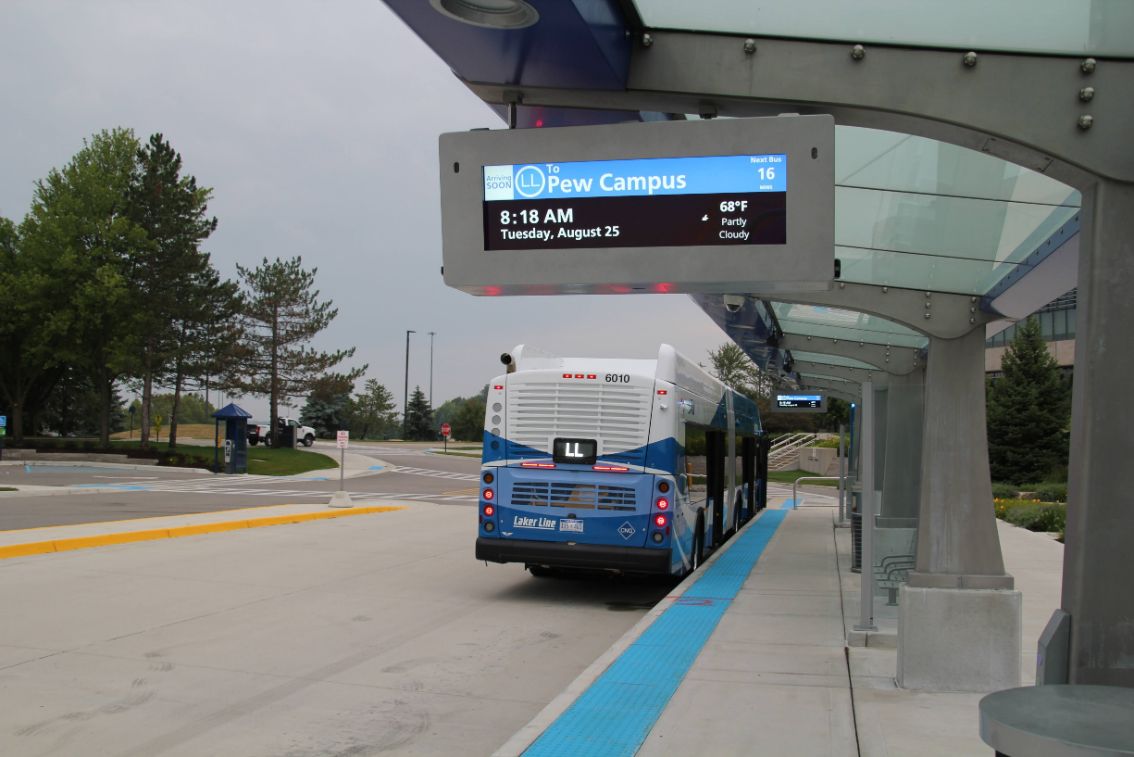

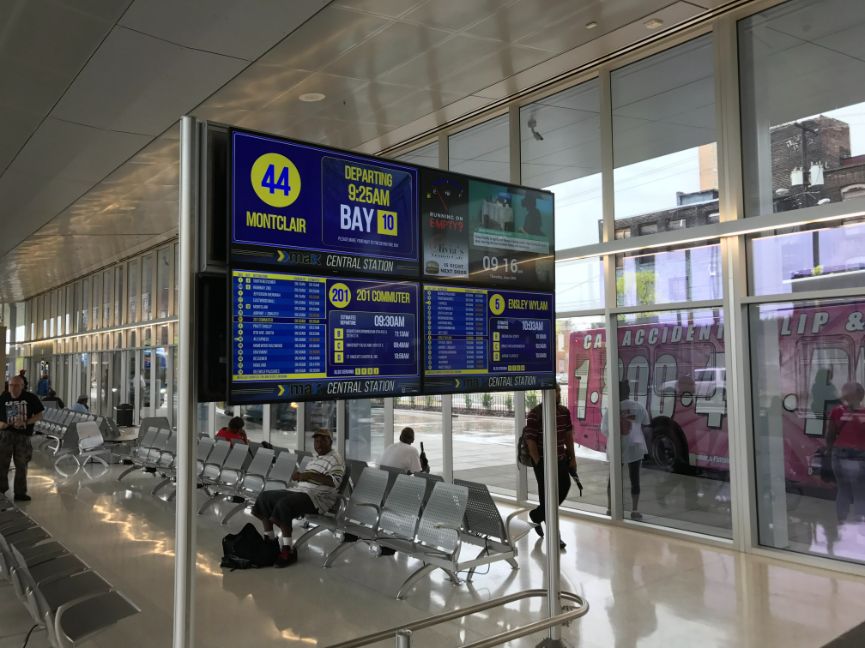

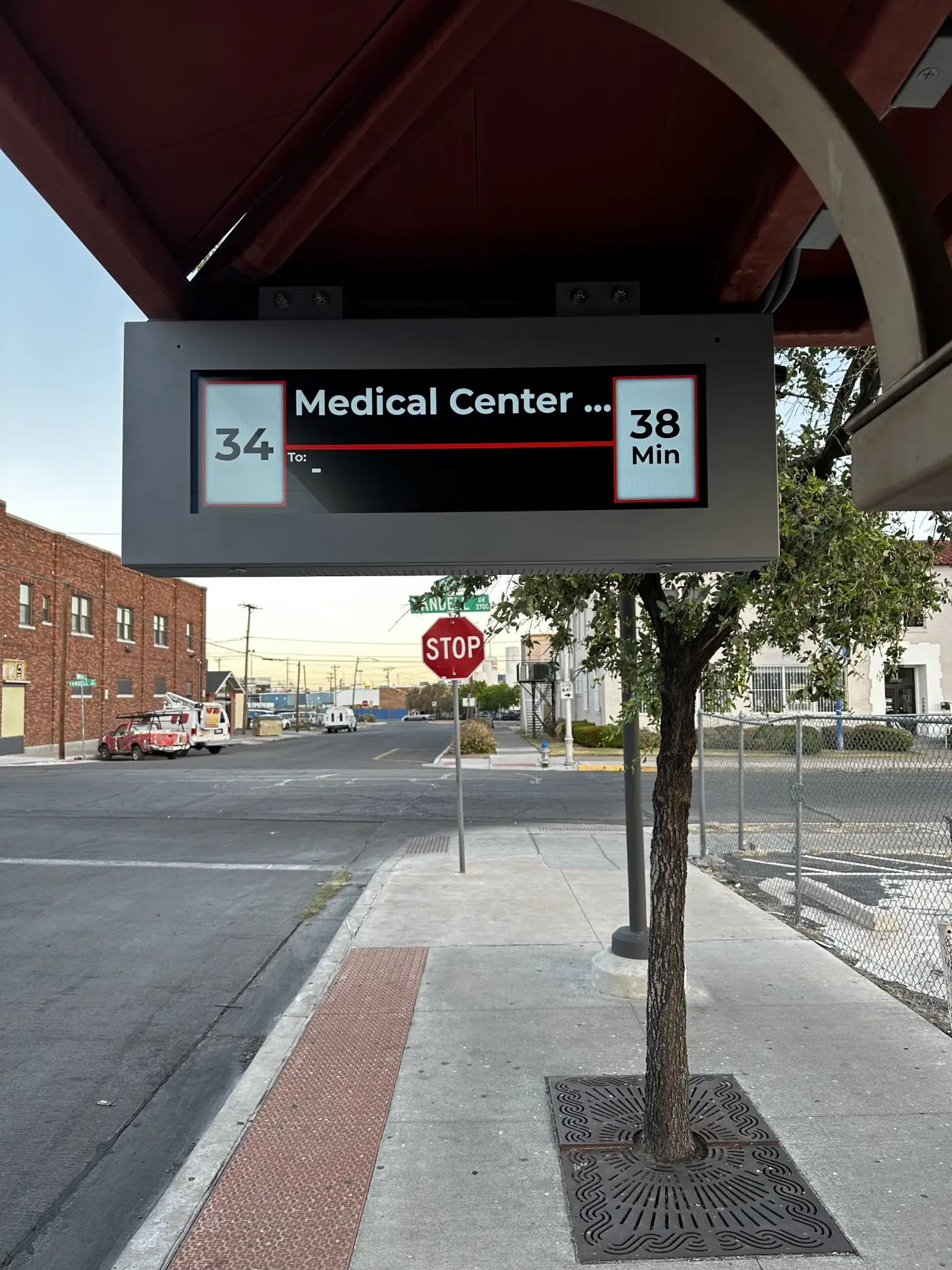

Photography from MPM project deployments. Agency-named case studies are published with each client's sign-off. Ask for references.
Want the full spec sheets?
Datasheets, CAD models, and mounting details for every family. Mention your RFP number and we'll route it to the right engineer.
